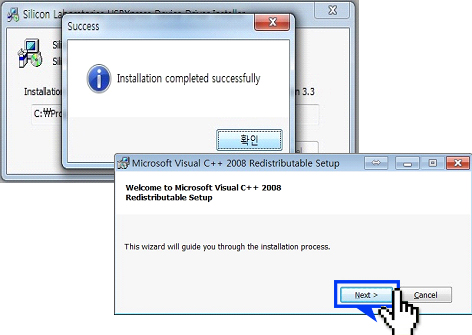

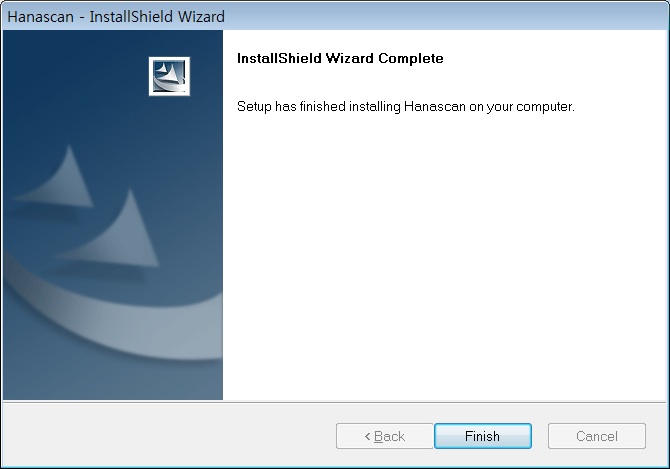

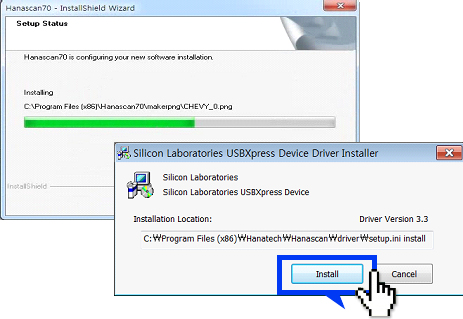

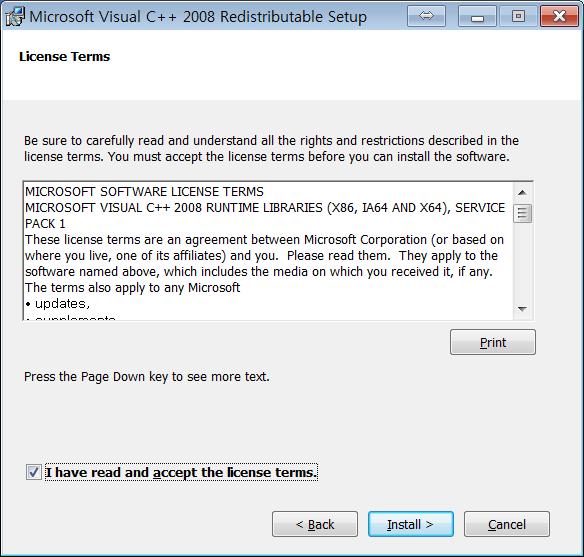

Using provided file or installation CD, Program shall be installed

Mostly to be automatically recognized, depends on installed OS shall be
taken by several seconds or minutes

If not be recognized well or delay, installed PC to be re-booted and
then identified again

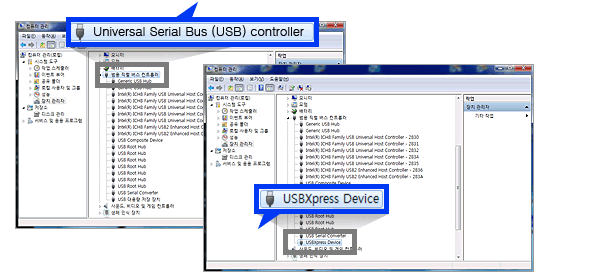

Identification of Driver Installation normally or not, if the relevant USB
controller to be expressed as below picture at currently installed window
equipment operator.(Power Supply/Identification after connection to
Diagnosis Module)
(64Bit OS operation shall be installed extra exclusive driver only)

- If Desktop Power is OFF condition or USB is not be properly connected
   between PC and Desktop

- If the driver normally to be recognized, USB Xpress Device shall
   be identified.

Bluetooth Function shall be added and searched New devices at the PC

Selected MOVON_SPP_3.0.4 device by double click(from time to time, shall
not be searched by only once)

If asking for authorization code during on registration, input numeral “0000”

Selected SPP DEV at the attention service and then click “ Next “

The Registration is completed, identified normally connected or not after
double click of MOVON_SPP_3.0.4

If normally to be connected, connected COM port(Serial Port) shall be
identified, selected relevant COM port at the Setup function on the Host
Program and to be stored and then able to be used Bluetooth function
at the Host.

PC and provided Module to be connected in provided USB Cable

Power to be connected in Vehicle or Miscellaneous part such as Adaptor Power
after identification of USB Cable normally connected or not

Power is supplied by OBD Cable during on scanning of Vehicle, but the case
of some model(Oldest ones) shall be recognized through extra Vehicle Adaptor

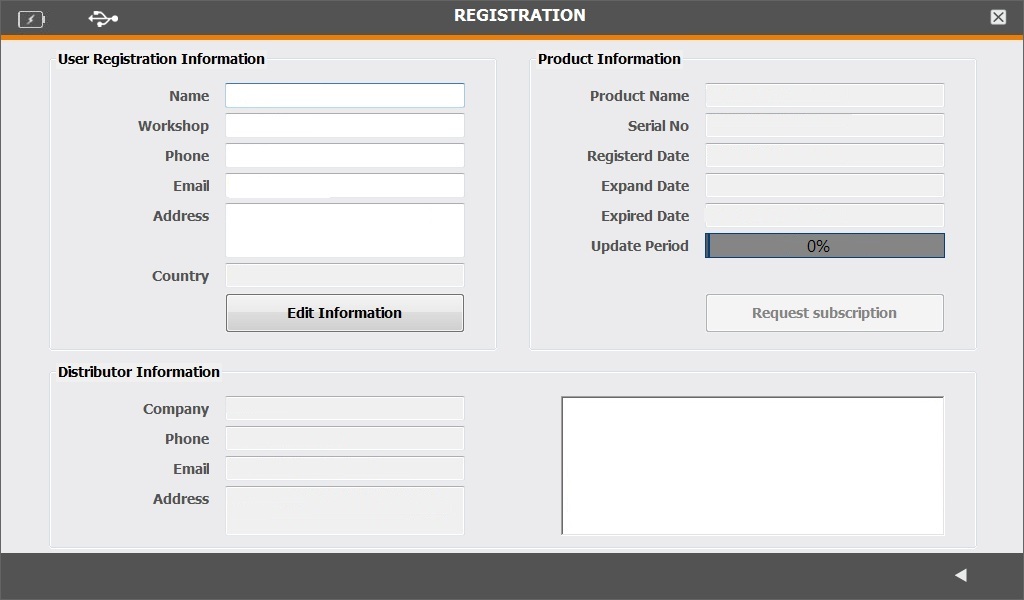

The purchaser of first product is able to use normally after registration of
product through below process.

- Module and Internet to be connected simultaneously and then process of
   Registration shall be executed.

- If Registration of Product is not be normally done, shall be restricted
   to be used Procedure of registration is able to be completed as under the
   same as picture,
   if registration is not be normally done, shall be contacted to upplier or
   producer by mail or phone
