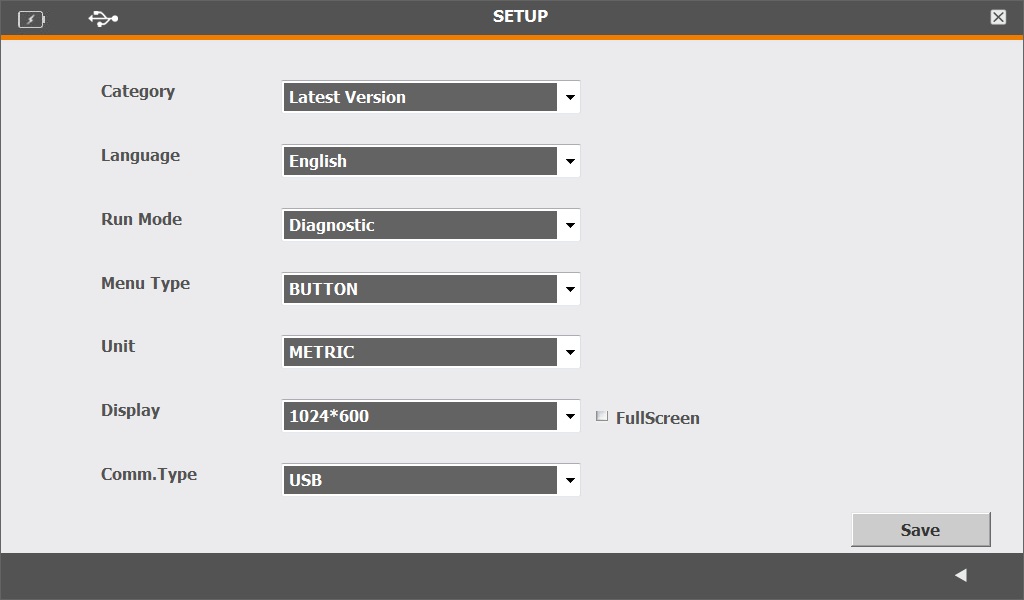

Selection of Category

- Selection of Diagnosis Program Version to be executed

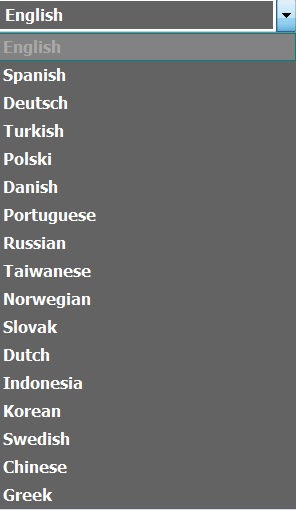

Creation of Language

- Supported 15 languages

- Revised language of Host by selected language

- Diagnosis Program to be selected against Upgrade by selected language
   (The case of supporting for relevant language on the Diagnosis Program)

Execution Mode

- Execution of Diagnosis Function

- Execution of Demo Mode Function

- Execution of Development Monitoring Function

Type of Menu

- Form Selection of Diagnosis Menu

Setup of Unit

- Selection of Unit such as METRIC, ENGLISH

Setup of Resolution

- Available to setup for 2 kinds of Resolution as 1024*600, 1024*768

- Supported Full Screen mode(Checked by Checkbox)

Setup for Communication Method

- Setup of Communication Method with Diagnosis Module

- To setup Communication of Bluetooth, Registered MOVON_SPP_3.0.4
   Device shall be double clicked and identified COM port (Serial Port)
   Then after selected exactly COM port as under

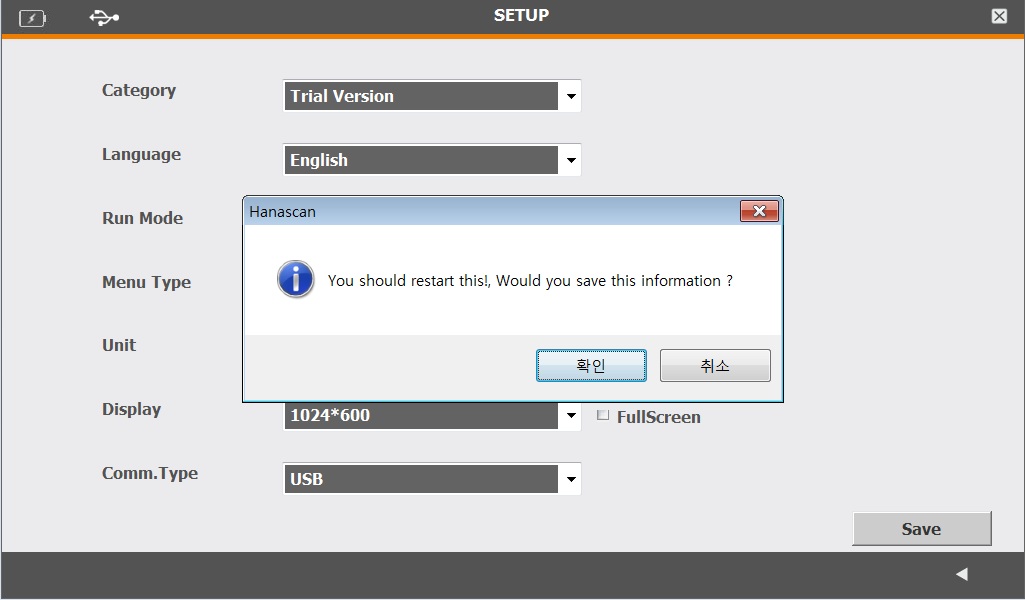

Setup Preservation Button

- Saved established Information

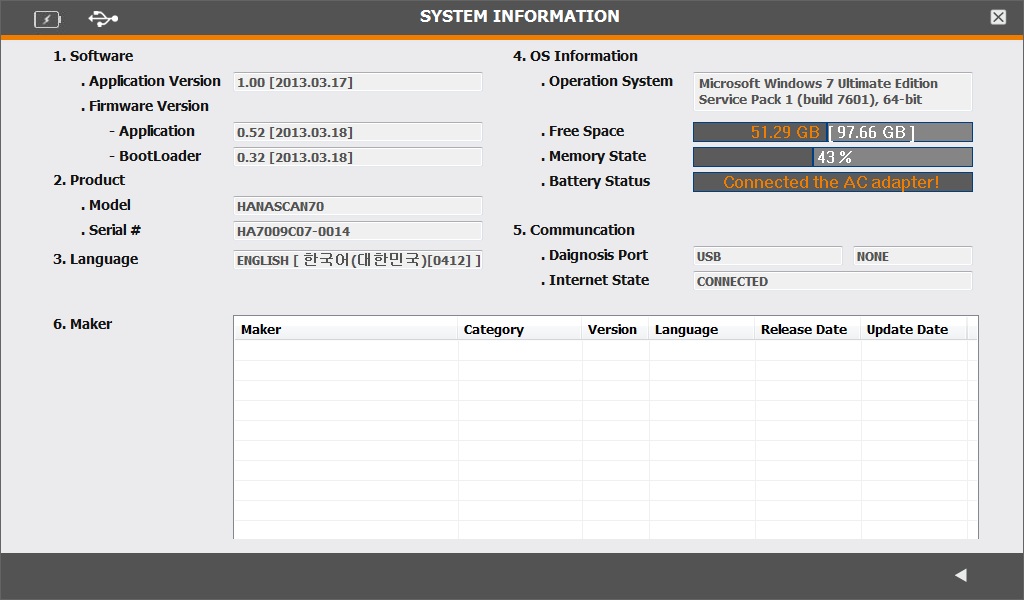

Software

- Indication of Host Program Version Information

- Indication of Equipment F/W Information (Application, Boot)

Product

- Indication of Equipment Model Information

- Indication of Equipment Serial Number

Language

- Indication of selected Language Information from Setup

OS Information

- Indication of OS Version Information for Computer

- Indication of HDD Usable Space Information

- Indication of Memory Condition Information

- Indication of Battery Information

Communication

- Indication of Communication Interface Information between Diagnosis
   Program and Module

- Indication of Internet Connection Information

Maker Information

- Indication of Installed Diagnosis Program Information List

- The Purchaser of the Diagnosis Equipment shall be formally registered and
   if not formal registered, able to be restricted during on use

Support of Remote A/S

- The function is available for solution of Program trouble during Customer
   located in long distance on use

Transfer of Feedback

- The function is available for quick relevant trouble after provision of
   feedback to Scanner Manufacturer in case of problem during
   on scanning.

Self Diagnosis of H/W

- The Function is available for self diagnosis by each parts for several list itself
   if operation shall not be executed after connection of Hanascan by User.

Function of Borescope

- The Function of Borescope to be saved Screen through identification of
   Video Screen after put into Borescope against invisible point.

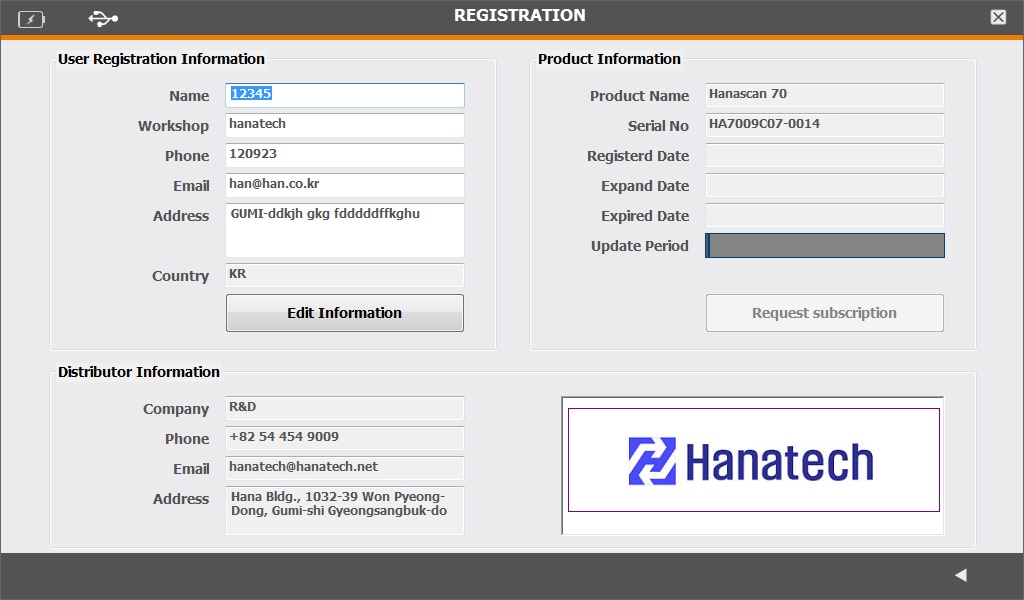

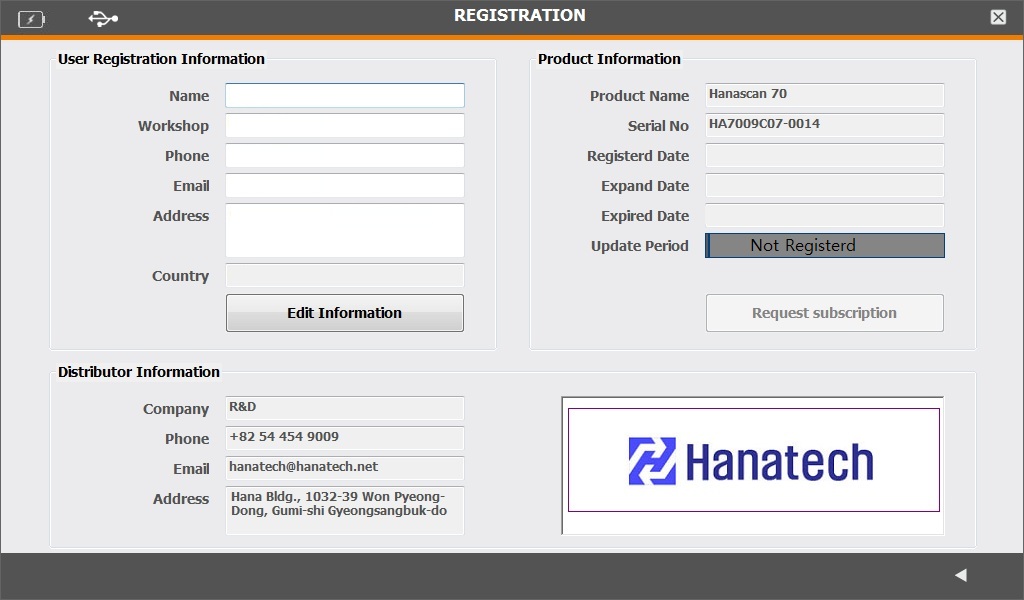

Equipment shall be registered through below process(Beginning after
connection of Diagnosis Equipment and PC)

- First Step : Execution of Registration Icon on Host Main Screen

- Second Step : Input User Personnel Information

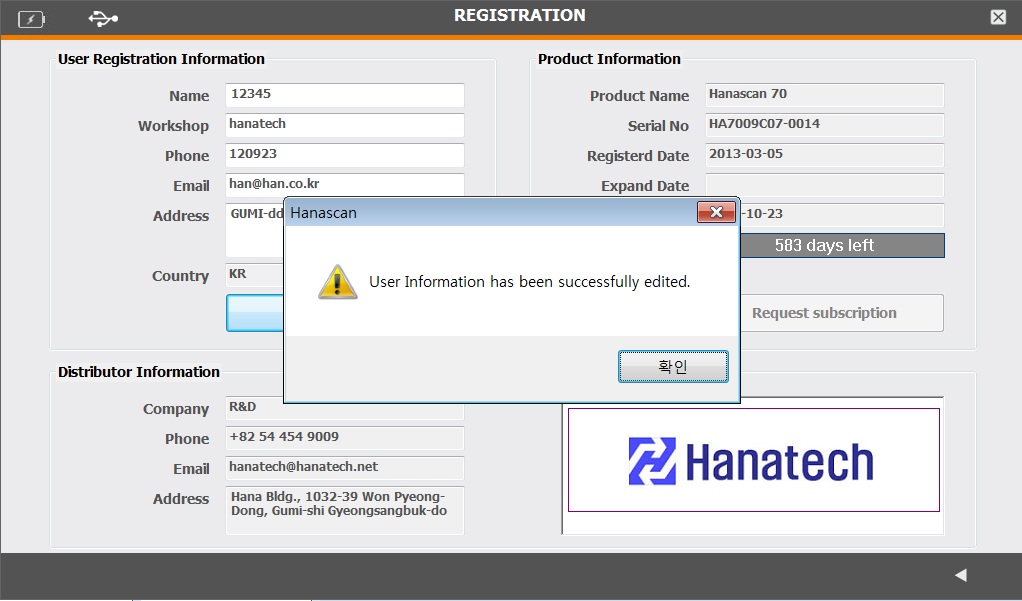

- Third Step : Execution of Registration Button After completion of insertion
   for Personnel Information
