- The Function of Self Test is available for self diagnosis by each parts
   for several list itself if operation shall not be executed after connection
   of Hanascan by User.

- If the list related each STEP to be caused trouble, shall be required A/S for
   troubled cable or equipment.

* [Caution]

- Make sure to read Explanation and Test to be started after taking a action
   of Pro-active

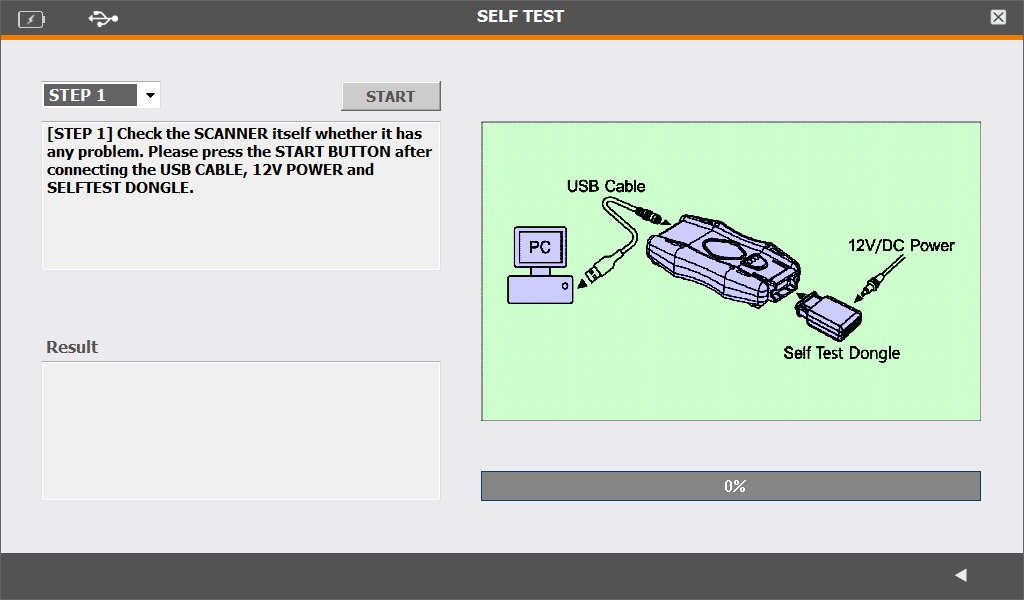

- STEP 1 shall be checked Connection of USB Cable normally or not between
  Computer and Hanascan

- Test shall be executed after connection of USB cable and 12V adaptor.

- Test shall be executed Progress Bar over processing if START Button
   to Be pushed.

- If no trouble after completion of test, SUCCESS shall be indicated and
   if trouble FAIL shall be indicated.

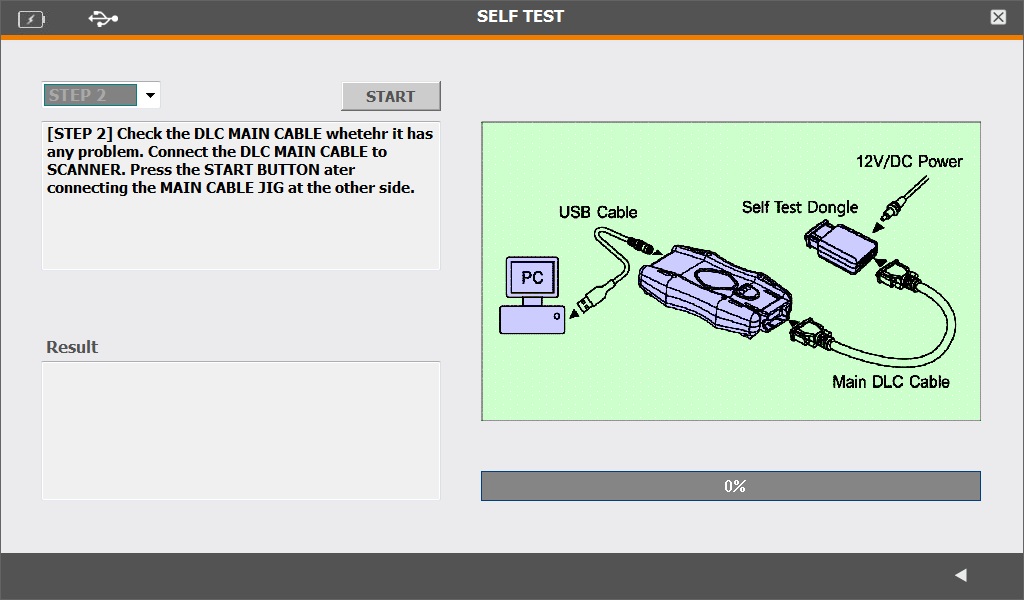

- STEP2 shall be checked the operation of Hanascan normally.

- Test available only if USB Cable, DLC Cable, Dongle of Self test,
   12V Adaptor shall be connected

- If no trouble, SUCCESS shall be indicated and if trouble, FAIL shall
   be indicated.

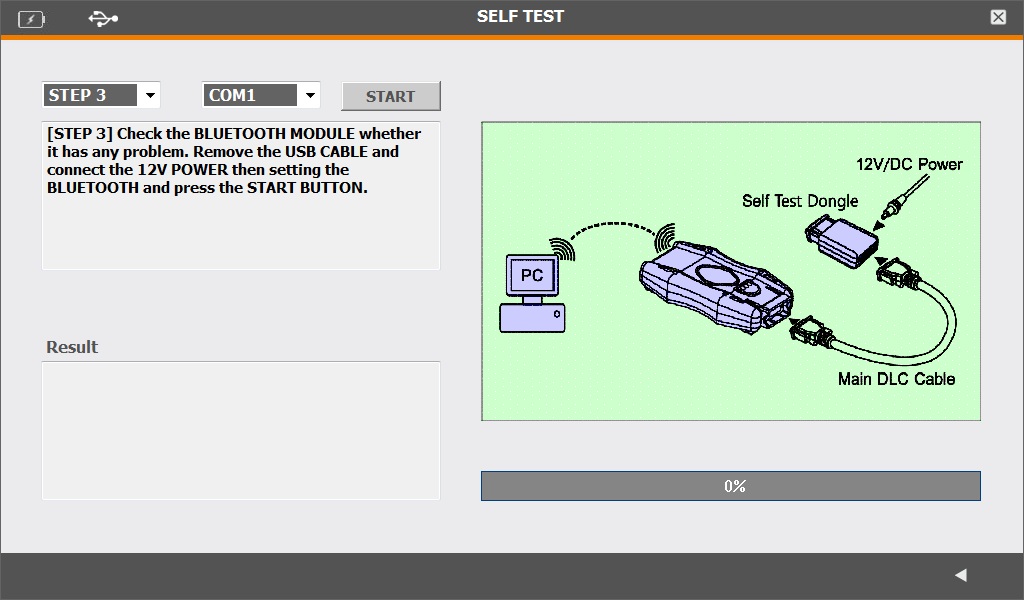

- STEP3 shall be checked the communication between Bluetooth Chip
   including of Hanascan Module and PC with Bluetooth
   normally or not

- USB Cable certainly to be cleared and Test shall be executed after
   establishing of Bluetooth with 12V Adaptor

- If Bluetooth Chip not be included at the PC, Test shall be executed
   after purchasing of Bluetooth Dongle.

- If no trouble, SUCCESS shall be indicated and if trouble,
   FAIL shall be indicated.

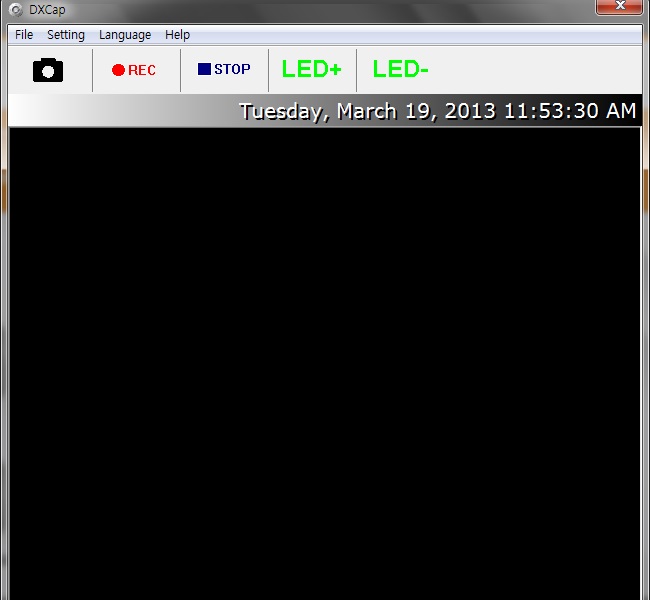

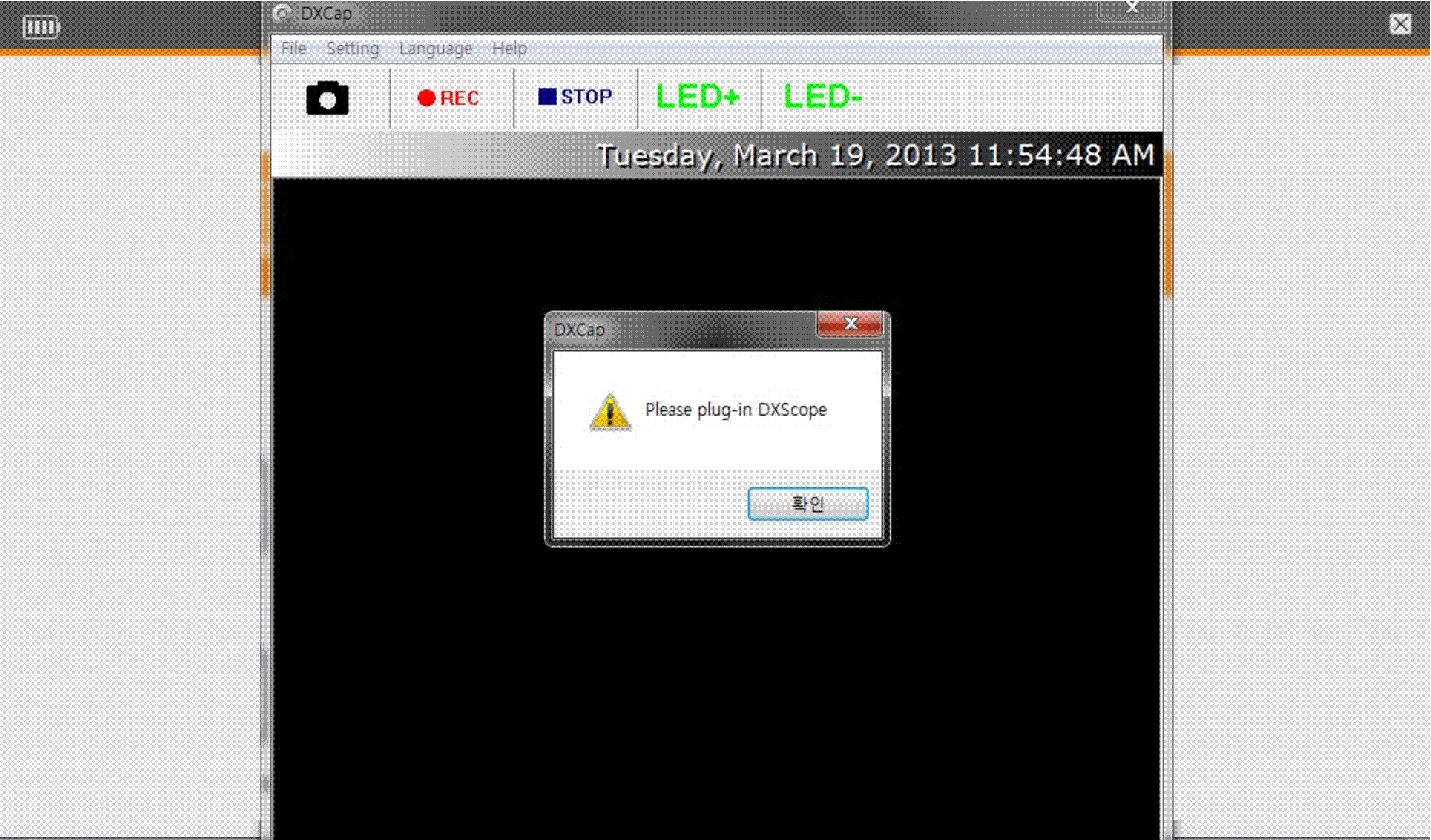

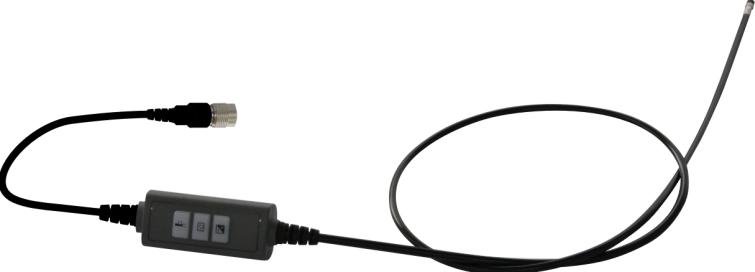

- If needed to use Borescope, the probe must be connected.

- When putting the probe into the location to be viewed,
   it will be shown with high resolution of video clip.

- In case of too dark, adjust [LED+/ LED-] to bright the screen.
