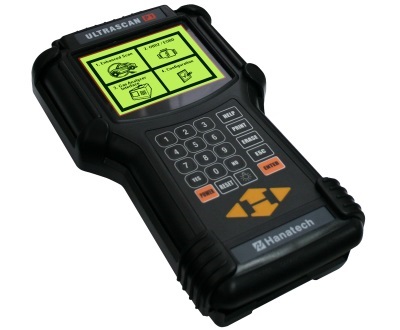

ULTRASCAN P1

Ultrascan P1

· Built-in CAN Bus System
· 512MB Mermory Card
· Live Data
· Activation Test
· Parameter Reset
· Key Coding
· Blackbox Flight Record
· ECU Simulation
· Digital Multimeter
· 4 Channel Oscilloscope
· Ignition Pattern Analyzer
· Gas Analyzer Interface
· USB Direct PC Interface

"All Product names remain the property of their respective corporations"

>>Specifications

Internal Memory : 1Mbyte SRAM
Memory Card : 512 Mbyte NAND Flash Memory
Display : 320x240 Graphic LCD with LED backlight
Input Device : Membrane Keypad
Quality System : ISO9001:2000
EMC Compliance : CE / C-tick / FCC / Gost

>>Diagnostic Coverage

-Asian Cars

-European Cars

Mercedes Benz, BMW, Volkswagen/Audi/Seat/Skoda, Opel/Vauxhall,
Ford, Renauit, Peugeot, Saab, Citroen, Fiat, Alfa Romeo, Lancia, Volvo,
Jaguar, Land Rover

-American Cars

GM, Ford, Chrysler

-Australian Cars

Holden, Ford

-Latin American Cars

GM-Opel

-Malaysian Cars

Proton, Perodus

-Built-in CAN BUS System

-General OBD2 and EOBD Compliant

>>Special Functions

Oscilloscope

-Four Channels Display up to 4 scope graphs at one time
-High Speed Digital Scope Sampling Rate 500kHz
-19 Pre-Setup Sensor Selection
Auto setup, Standard Pattern presentation
-HOST-PRO Realtime PC Interface
View waveform by PC screen through USB

Ignition Pattern Analyzer

-Primary & Secondary Ignition Pattern
-Conventional and DLI/DIS Engine
-Display Mode
Individual Waveform-Single pattern for Cyliner
parallel Waveform-Up to 6 Cylinders
Peak Voltage bar graph display (Up to 8 Cylinders)
Battery Voltage, Dwel angle, Spark time indication

HOST-PRO Realtime PC Interface

View ignition pattern by PC screen through USB

Digital Multimeter

-Dual Channel
-Voltage Meter : DC 30V
-Frequency Meter : 1hz~100KHz
-Duty Cycle : 0~99.9%
-Current Meter : 0±128A(Optional)

Emission Analyzer Interface

Realtime interface with IM2400 Ultra 4/5 gas analyzer
that enables simultaneous display, record and replay
of scanner data and gas readings

-Reliability Andros 6241 inspection level gas bench
-Business Solution
A solution for contries with 1/M program and regulations

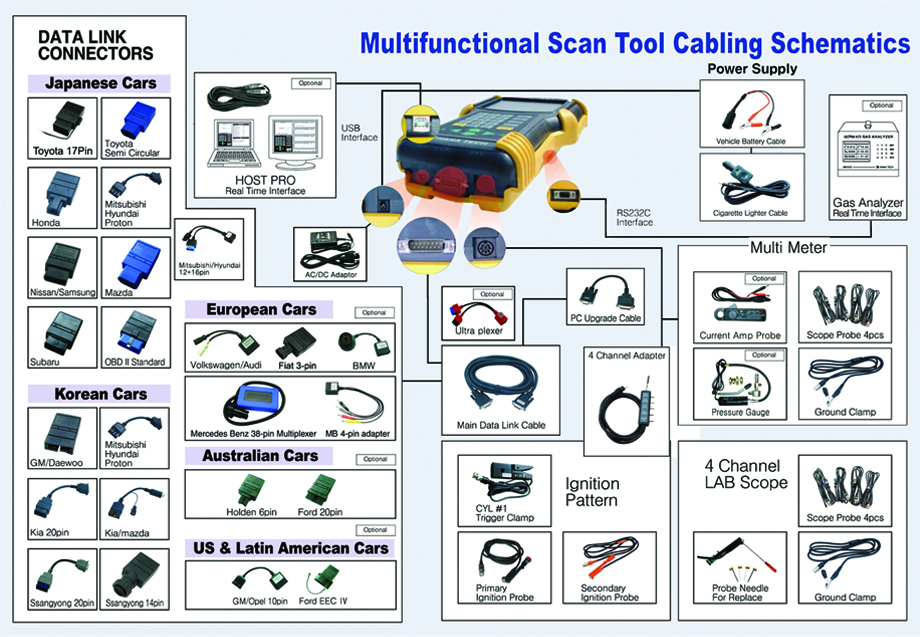

>>Data Link Connectors
