How to Change Current Data Measurement Unit


The measurement unit change function is supported from OS Version 5.15.

The measurement unit change function for each vehicle brand is scheduled to be available from the version released after June 10th, 2009.

1. How to set unit on OS

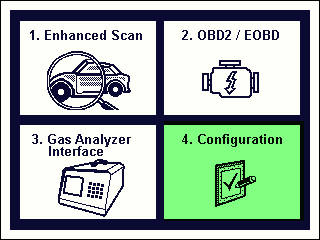

STEP 1. Choose ‘4. Configuration' at first main screen

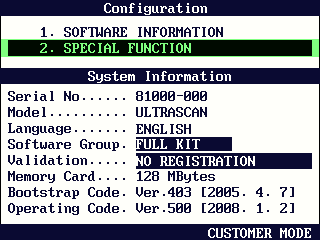

STEP 2. Choose ‘2. SPECIAL FUNCTION'

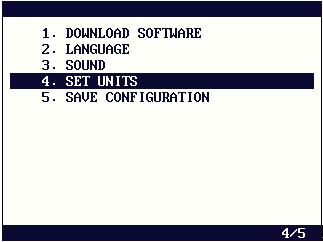

STEP 3. Choose ‘4. SET UNITS'

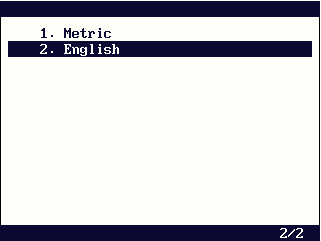

STEP 4. Choose ‘Metric' or ‘English'

STEP 5. Choose ‘SAVE CONFIGURATION' then the scan tool will be restarted.

II. The Screen for Current Data when vehicle diagnosis



The below pictures are examples for changed sensor value and measurement unit of current data for same vehicle.

Example 1. Screen after ‘English' setting.

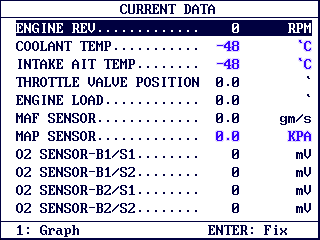

Example 2. Screen after ‘Metric' setting
